ISOTEC interior waterproofing with the 4plus layer system

If the construction scenario makes it impossible to apply waterproofing (protective layer to prevent moisture from entering a building) from the outside, we use ISOTEC’s interior waterproofing. This procedure ensures that basement rooms are safely sealed and can be used for high-value purposes

Retrofitting interior waterproofing on video

The individual steps of ISOTEC interior waterproofing

Damaged basement wall surface Setting up the site including taping the trails Existing old plaster off staking An about 30 cm wide strip of floor is removed Applying the liability through injection inner Press a Groove in the wall-sole range Creating the Groove in the wall-sole range Order of equalizing and water repellent ISOTEC sealing plaster Order the ISOTEC cement slurry in two layers Bonding the ISOTEC-climate-panel to protect of the sealing and to improve the room climate Alternatively to the ISOTEC-climate-panel the ISOTEC repair plaster can be applied Finished space upon completion of the work

The problem: moisture entering from the side

Moisture penetrating from the side enters the building substance in the area touching the earth. The cause is faulty or absent exterior waterproofing. Interior waterproofing is the optimum solution if it is not possible to fix the outside.



The ISOTEC system solution

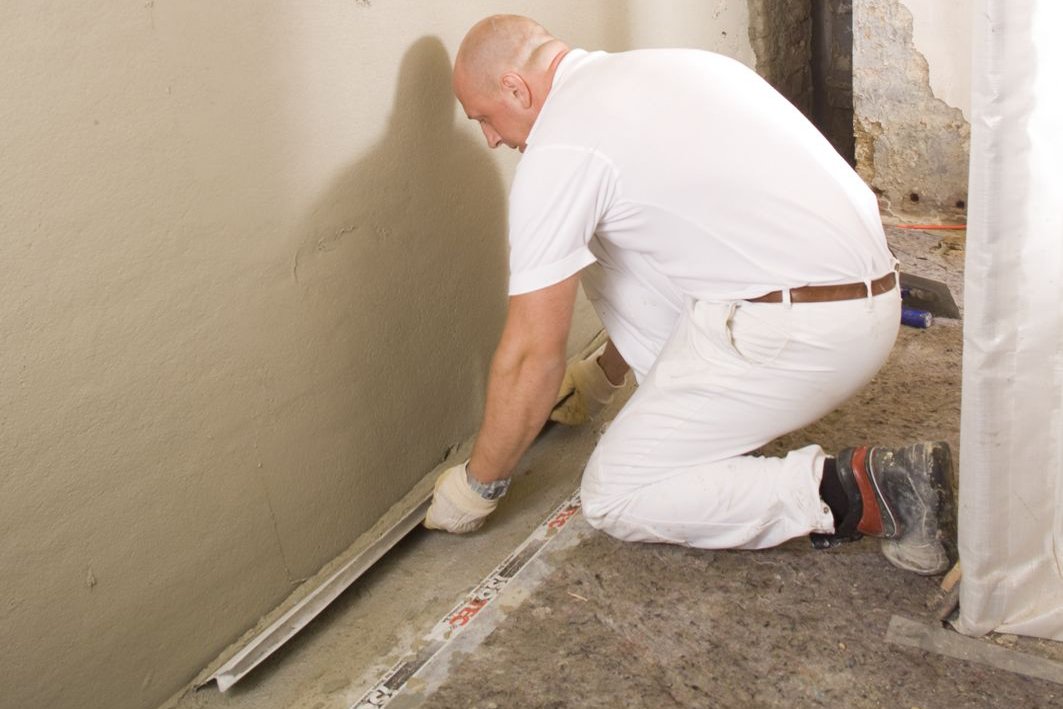

Application of ISOTEC sealing plaster
Application of ISOTEC sealing plaster

1. Levelling plaster (first layer)

After exposing and cleaning the masonry, the ISOTEC sealing plaster is applied to the whole surface. This is a special mortar enhanced with plaster. It ensures optimum adhesion and evenly spread strength of the layers to follow - the requirement for functional waterproofing (protective layer to prevent moisture from entering a building). The moisture-proof, water-resistant sealing plaster is applied all the way down to the foundation slab and thus joins the entire floor-wall connection to the waterproofing.

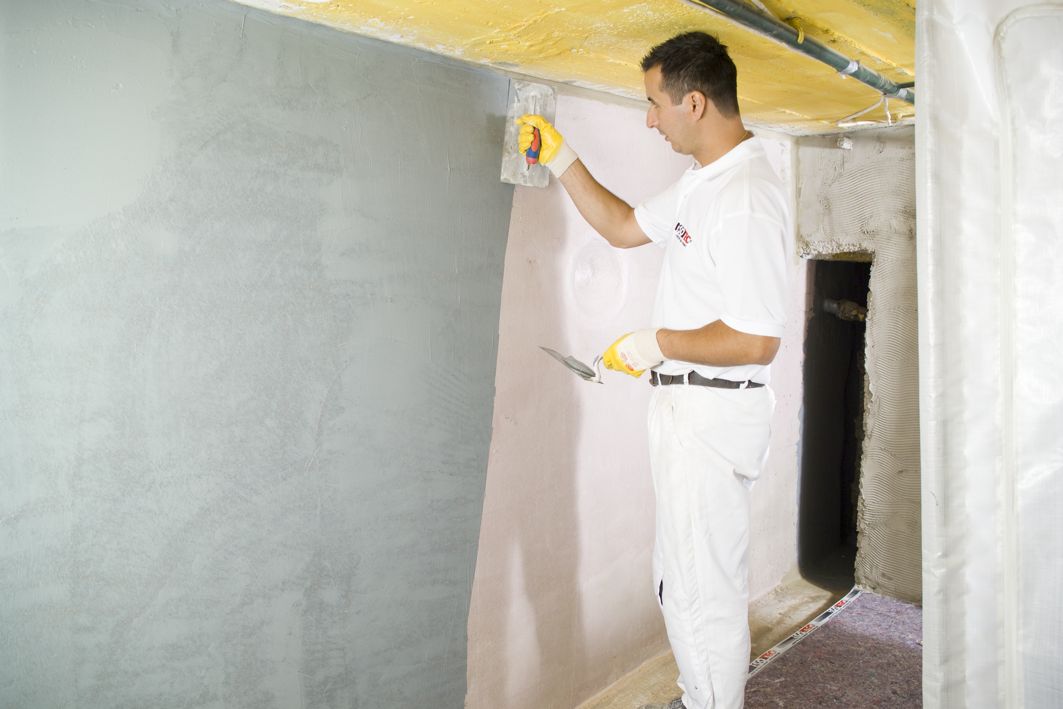

Order the ISOTEC inner seal
Order the ISOTEC inner seal

2. Interior waterproofing (second and third layer)

Special sealing putties are applied in two layers, one after another. These flexible materials form the actual waterproofing layers. They are watertight and gap-sealing, and thus ensure permanent protection from moisture in the waterproofed wall areas.

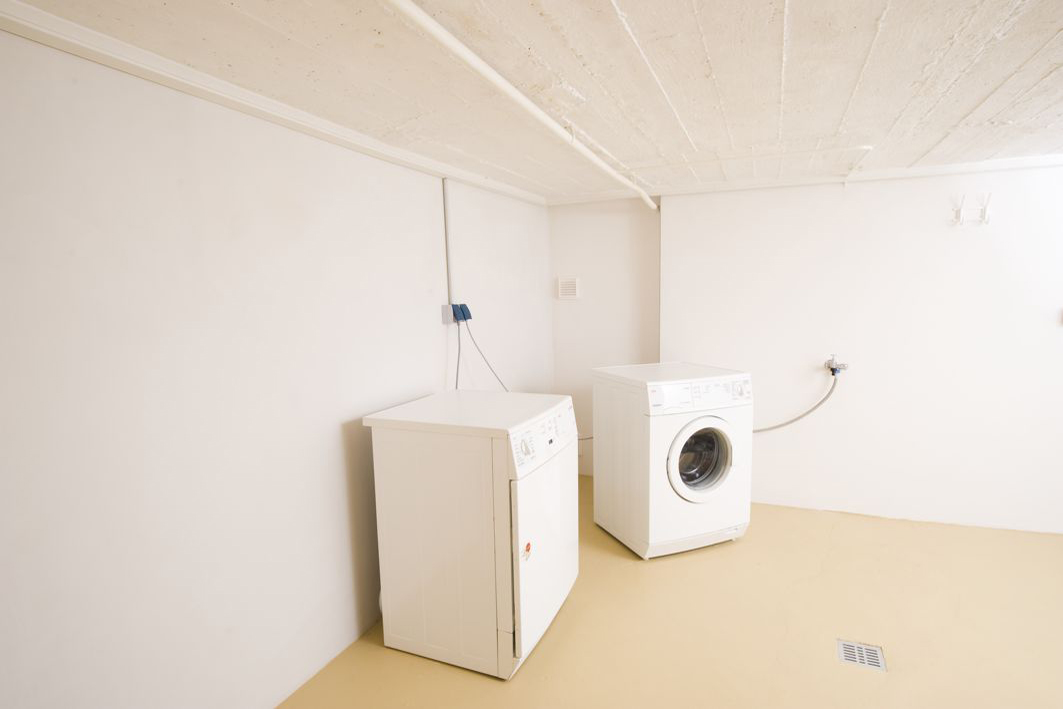

Completed renovated cellars
Completed renovated cellars

3. Heat insulation and protective layer (fourth layer)

The ISOTEC climatisation panel in calcium silicate ensures additional heat insulation and a pleasant room climate. It holds moisture that it then releases over a large area into the surrounding air when the room’s humidity sinks. An alternative to the ISOTEC climatisation panel in calcium silicate can be the application of a special vapour-permeable plaster (see also ISOTEC information on special plaster).



An overview of your benefits:

An overview of your benefits:

  •  Permanent moisture protection from the inside
  •  Flexible sealing materials
  •  Certain success in restoration - permanent protection
  •  Better living climate
  •  Real estate retains its value

ISOTEC interior waterproofing in a comparison test

ISOTEC interior waterproofing in a comparison test

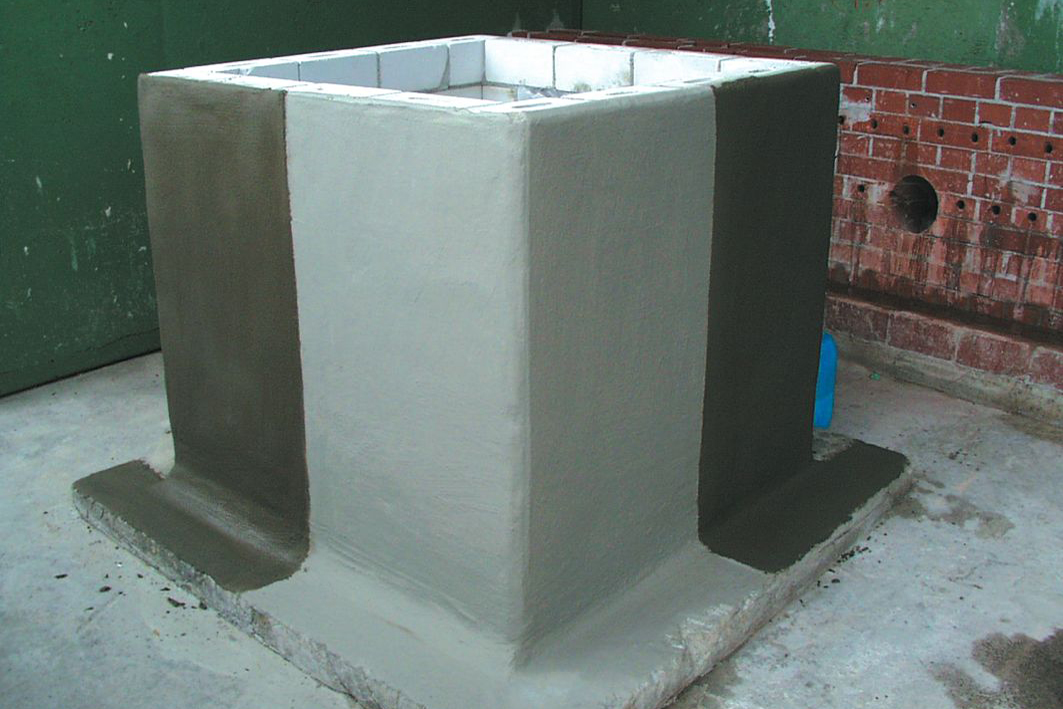

Test pool inner seal
Test pool inner seal

All ISOTEC products are tested under the strictest practical experiment conditions. Together with leading manufacturers, ISOTEC has tested 12 interior waterproofing systems. Only two passed the ISOTEC long term test. Most systems cannot sufficiently stand firm against the water pressure. Water pushes through the joins. In the test results, the ISOTEC system proved to be permanently sealed and is the system that can mechanically bear the heaviest load.







ISOTEC quality: government certified, scientifically confirmed

ISOTEC quality: government certified, scientifically confirmed

WTA-Logo
WTA-Logo

At ISOTEC we only use systems that fulfil the strictest requirements. The workmanship of the ISOTEC waterproofing is completed according to the requirements of the WTA (WTA Info “Retrofitting of waterproofing for building components in contact with earth”).
